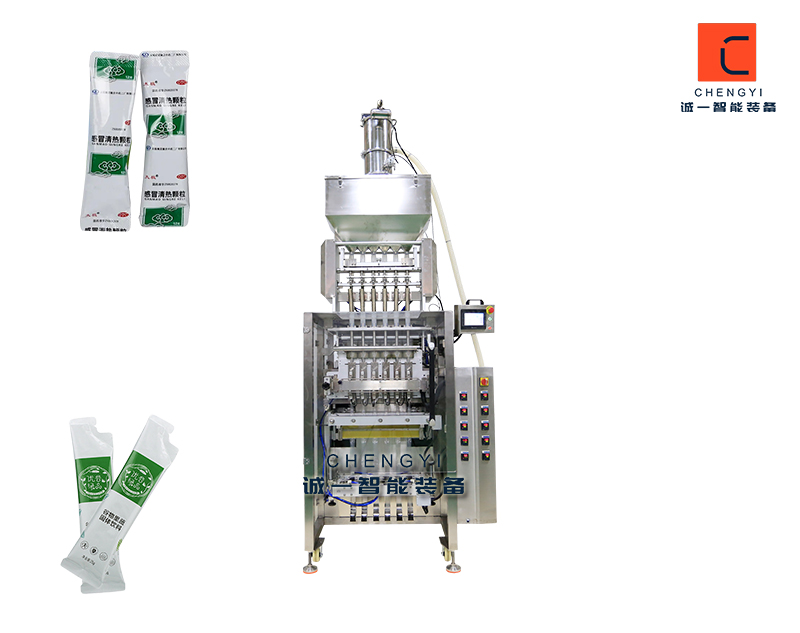

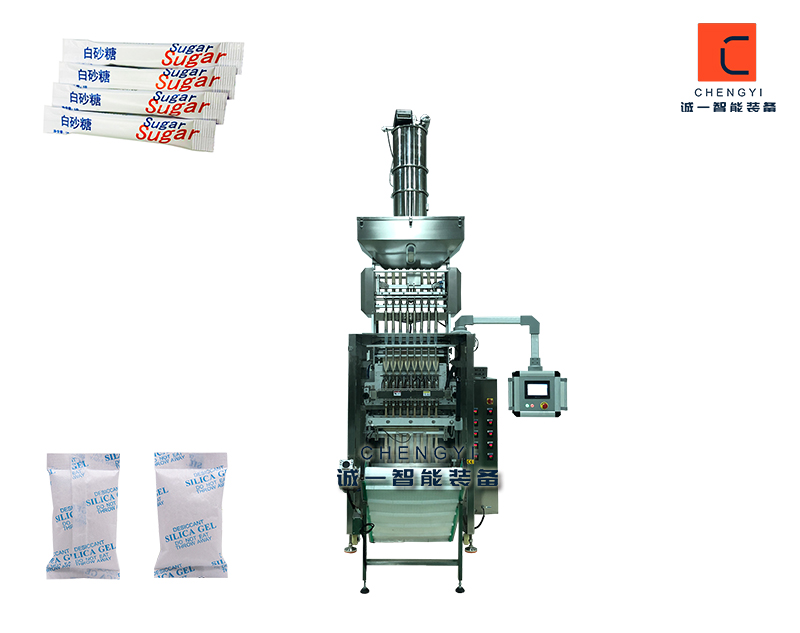

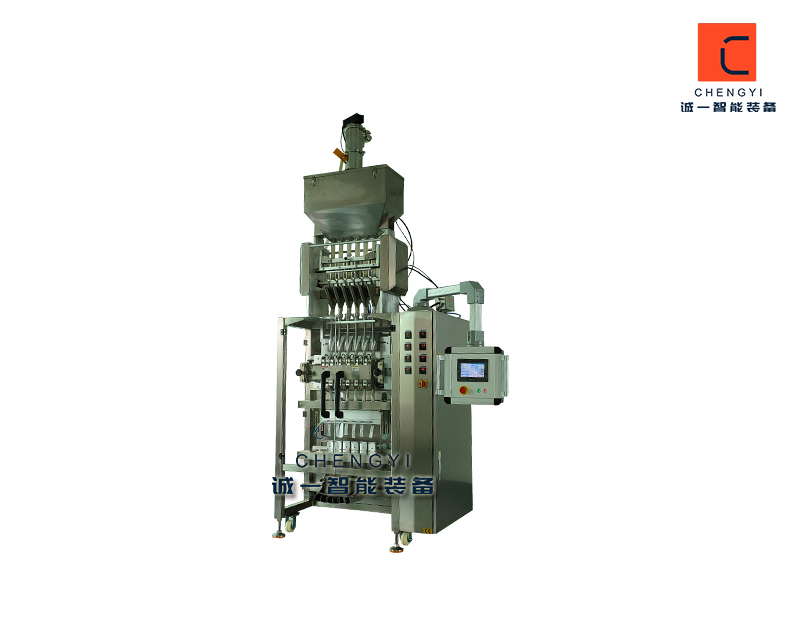

Product model:CY300BK/CY600BK/CY900BK
Lanes number:2-18 lanes
Capacity:30--50 / Max.30-50cycle/min/lane
Bag size:L:50-180mm W:17-105mm
Film width&thickness:Max.300-900mm,0.07--0.1mm
Measuring Method:1、Vomuletric cup;2、weigher
Sealing type:Back sealing/stick bag
Cutting type:1、Straight cutting;2、Zig zag cutting 3、Round cutting;4、Die-cut
Power supply:1N+PE/50HZ/AC220V/380V/3.5kw
Air consumption:0.8 MPA 0.8m3/min
Dimension:1385*918*2005mm
Weight:400-950kg
The multi column back sealing particle packaging machine is suitable for granular products in industries such as medicine, food, daily chemicals, pesticides, and health products, such as sugar, coffee, seasoning, desiccants, salt, laundry detergent, activated carbon, pharmaceutical particles, granules, etc.
We can help you find the goods you want by phone
Machine video introduction
Effect of packaging sample bag








Machine parameters
Model | CY300BK | CY600BK | CY900BK |
Lanes | 2-4 lanes | 3-10 lanes | 4-16 lane |
Capacity | 30--50 Bags/Lane/Min | ||
Bag width | 17-70mm | 17-95mm | 17-105mm |
Bag length | 50-180mm | ||
Film width | Max.300mm | Max.600mm | Max.900mm |
Measuring | Vomuletric cup/weigher | ||
Sealing type | Back seal | ||
Cutting type | Straight cutting/Zig zag cutting/Round cutting/Die-cut | ||
Power supply | 50HZ/AC220V/3.5kw | 50HZ/AC220V/5.5kw | 50HZ/AC220V/7.5kw |
Air consumption | 0.8 MPA 0.8m3/min | ||
Dimension | 1900*1440*3130mm | 1860*1750*3300mm | 1860*2050*3375mm |
Weight | 900kg | 1100kg | 1400kg |
Machine details

Electric box

Machine side

Machine Side 1

Front of the machine

Measuring cup measuring system (1)

Bucket

Blanking hose channel

Vacuum feeding
