Product model：CY300BK/CY600BK/CY900BK
used in medicine, food, daily chemical, pesticide, health products and other industriesProducts such as sugar, coffee, seasoning, desiccant, salt, washing powder, activated carbon, medicine granules, granules, etc.
We can help you find the goods you want by phone
Machine parameters
| Model | CY300BK | CY600BK | CY600BK |
| Lanes number | 2-6 lanes | 3-12 lanes | 4-18 lane |
| Capacity | 30--50 / Max.30-50cycle/min/lane | ||
| Bag size | L 50-180mm W:17-70mm | L::50-180mm W:17-95mm | L::50-180mm W:17-105mm |
| Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm |
| Measuring Method | 1.Vomuletric cup;2. weigher | ||
| Sealing type | Back sealing/stick bag | Back sealing/stick bag | Back sealing/stick bag |
| Cutting type | 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut | ||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm |
| Weight | 400kg | 600kg | 950kg |
Machine details
Electric box
Machine side
Machine Side 1
Front of the machine
Measuring cup measuring system (1)
Bucket
Blanking hose channel
Vacuum feeding
complete machine
Machine video introduction

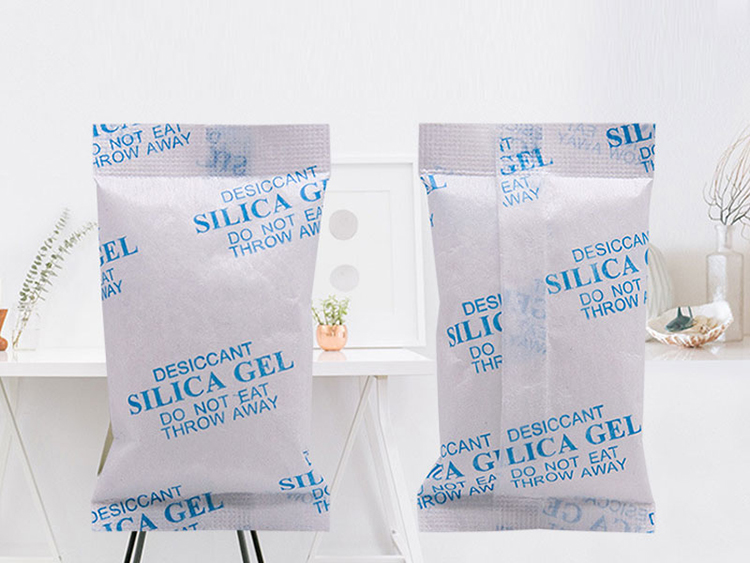

Effect of packaging sample bag
