Product model:CY300BF/CY600BF/CY900BF
Lanes number:2-16 lanes
Bag size:L:50-180mm W:20-105mm
Film width&thickness:Max.300-900mm,0.07--0.1mm
Capacity:Max.20-40cycle/min/lane
Measuring Method:long auger、short auger、short auger with cup
Power supply:50HZ/AC220V/380V/3.5-7.5kw

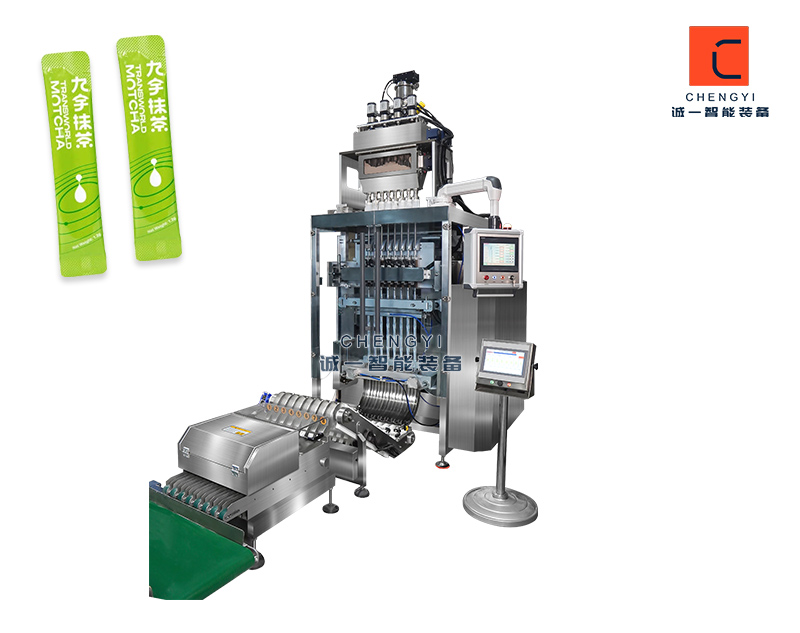

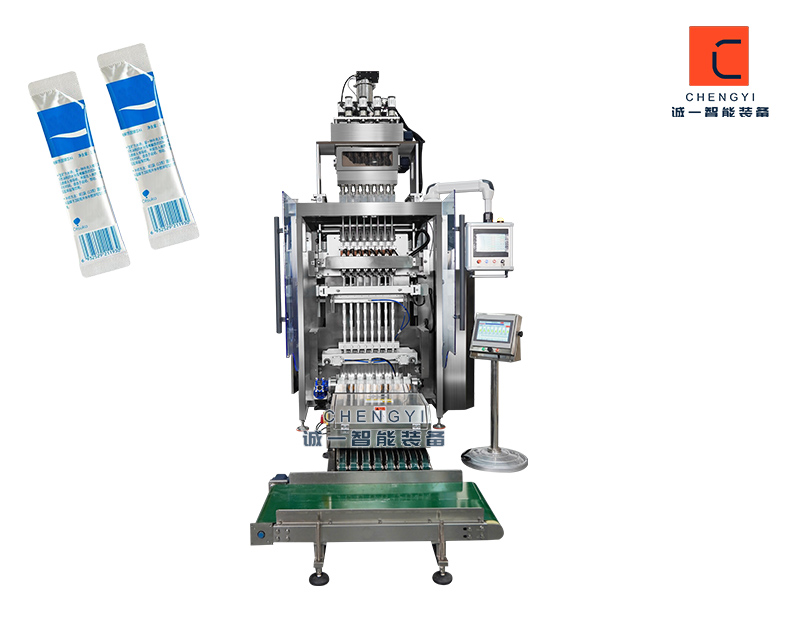

The 8-column powder packaging machine is a fully automatic packaging equipment that can automatically complete tasks such as quantitative feeding, bag making, filling, counting, sealing, cutting, outputting finished products, labeling, printing, etc. It can be matched with material handling devices to form a complete production line. Suitable for packaging tea powder, meal replacement powder, nutritional powder, milk powder, soy flour, protein powder and other brewed beverage powders. This machine adopts a multi column packaging form, with fast speed and high efficiency.
We can help you find the goods you want by phone

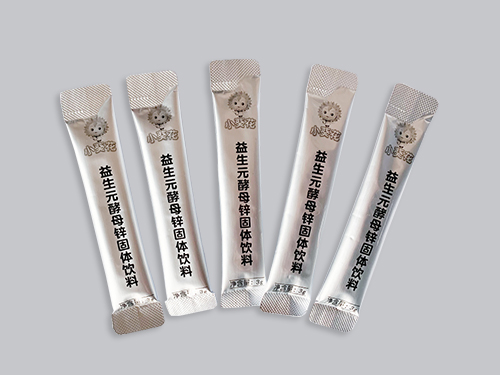

Packaging sample bag








Machine parameters
Model | CY300BF | CY600BF | CY900BF | |
Lanes | 2-4 lanes | 3-10 lanes | 4-16 lane | |
Packing speed | 20--40 Bags/Lane/Min | |||
Bag width | 20-70mm | 20-95mm | 20-105mm | |
Bag length | 50-180mm | |||
Film width | Max.300mm | Max.600mm | Max.900mm | |
Measuring | Long auger/Short auger/Short auger with cup | |||
Sealing Type | Back seal | |||
Cutting Type | Straight cutting/Zig zag cutting/Round cutting/Die-cut | |||
Power supply | 50HZ/AC220V/3.5kw | 50HZ/AC220V/5.5kw | 50HZ/AC220V/7.5kw | |
Air consumption | 0.8 MPA 0.8m3/min | |||
Dimension | 1900*1440*3130mm | 1860*1750*3200mm | 1860*2050*3300mm | |
Weight | 900kg | 1200kg | 1500kg |

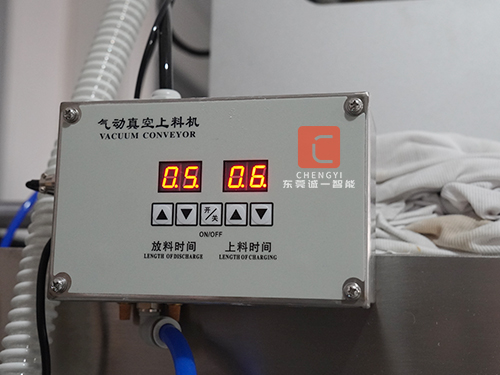

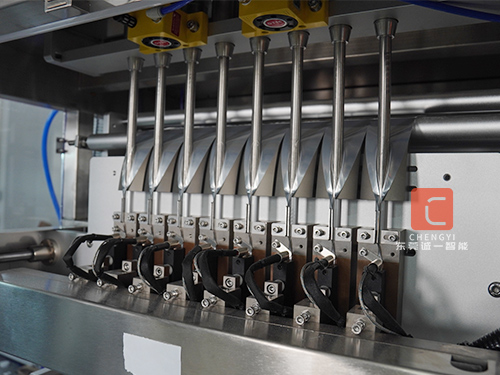

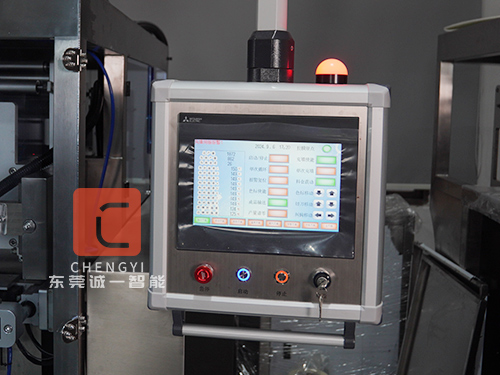

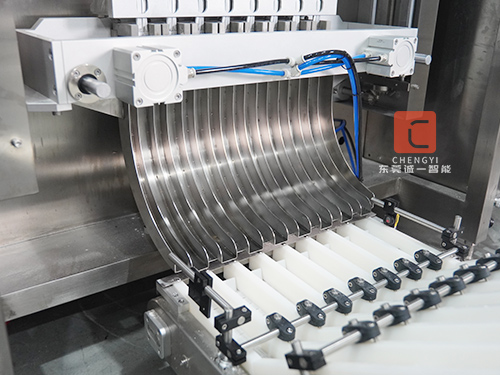

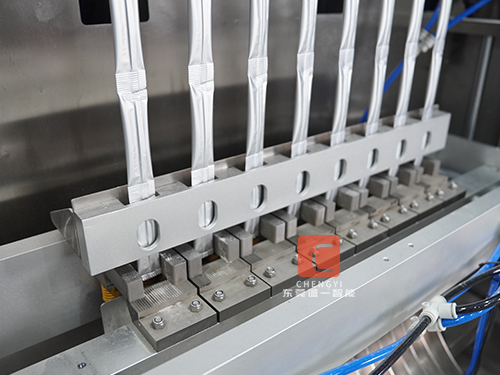

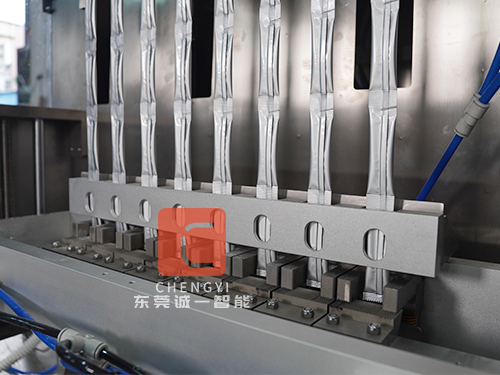

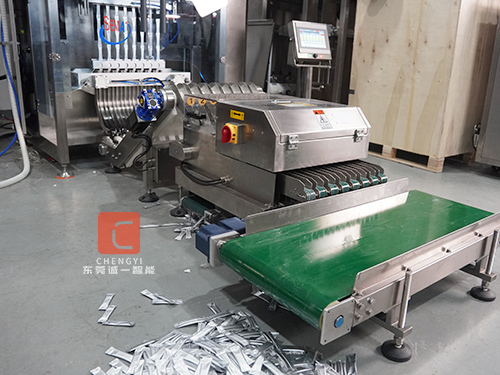

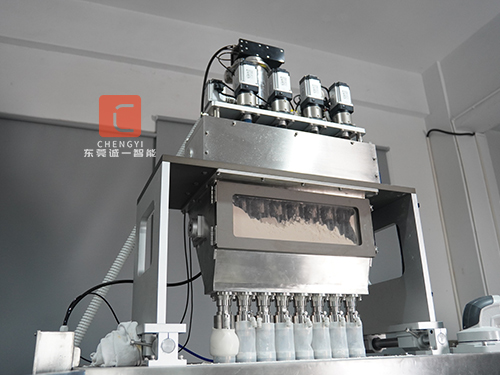

Detail drawing
